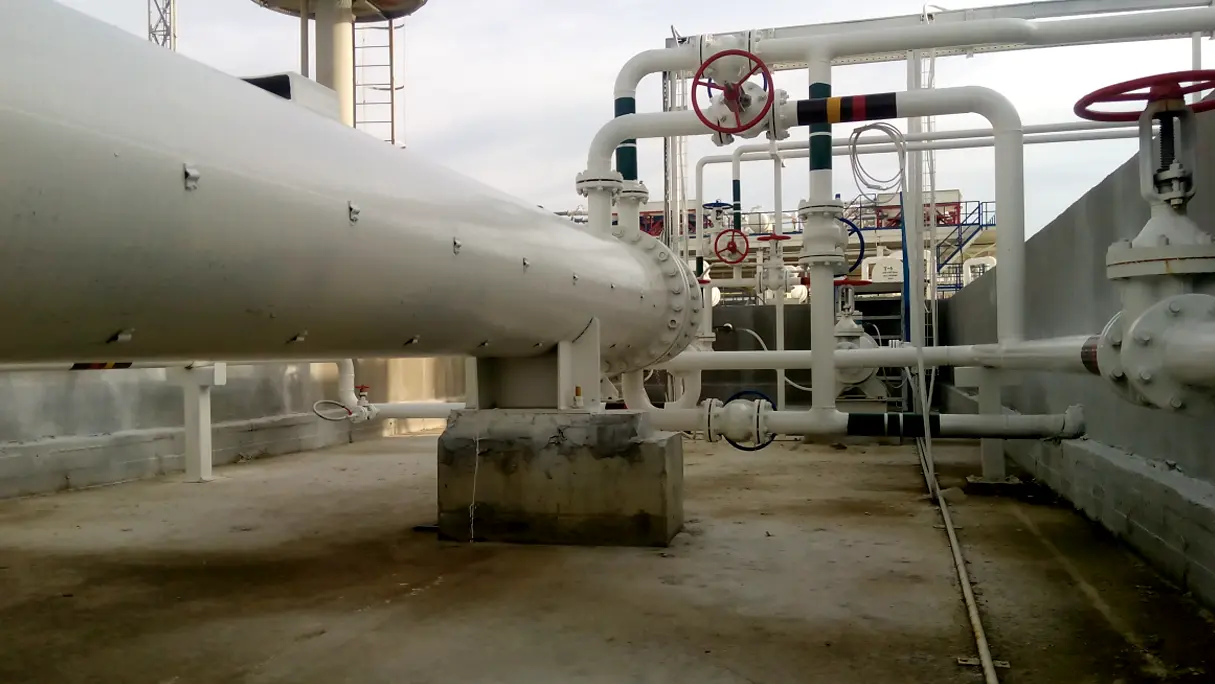

The most likely challenges to the effectiveness of heat exchangers are likely to be fouling and clogging, and as such, an individual would question: What is a heat exchanger when its effectiveness is continuously reducing? A heat exchanger is developed to conduct the heat energy efficiently, but it cannot be sustained over an indefinite period; the effectiveness of heat exchangers reduces with time, through fouling or accumulating deposits (scale). This loss in efficiency increases pressure, and this increases the cost of operation.
Maintaining full capacity, it requires a proactive approach involving both fluid quality management and scheduled mechanical cleaning. If you have proper filtration or thermal stabilization installed, then scale formation will occur less frequently, thus providing consistent performance and stable energy transfer throughout manufacturing processes.
Warning Signs Your System Is Operating Below Capacity
You do not have to physically open the unit to learn if it is having difficulties; usually, the data will provide the answer prior to visual confirmation. One of the most common indicators of difficulty in heat exchangers is pressure drop. When a pump must exert more effort to move the fluid through narrow passages due to an accumulation of material that is restricting flow, this indicates that there is clogging present within the unit.
Watch for these specific red flags in your control room:
Approach Temperature Gap: The gap between the hot and cold fluid temperatures begins to widen.
Fuel Usage: Increased energy is consumed by boilers or chillers to maintain a specified temperature setpoint.
Reduced Hydraulics: Reduced volume being discharged from the system when running at its rated capacity.
How Fouling Impacts Heat Transfer Performance
Fouling acts as a thermal blanket, preventing the heat from moving efficiently from one fluid to the other. Even a layer as thick as a few millimeters has been shown to reduce heat transfer rates up to thirty percent, causing thermal energy to be wasted.
When fouling occurs in heat exchangers, such as shell and tube designs, it will often create “hot spots” (where fluid does not flow) inside the unit and result in uneven heating, which can cause localized stress on the metal and therefore lead to cracks or leaks.
[Fun Facts] Beyond the Steel Shell
|
Category |
The Insight |
|
Ancient Engineering |
Have you ever wondered if the Romans were civil engineers? Well, they were! They could construct hypocausts (a primitive form of heat exchanger) to warm up their public bath houses by heating air in a furnace and forcing it through ducts beneath the floor. |
|
Human Body Tech |
You have an exchanger everywhere you go! It also provides a moisturizer to keep your respiratory system healthy by also warming your nose as you breathe. |
|
Extreme Cold |
The future of energy production in 2026 will be through cryogenics. Specialized designs of heat exchangers are required for storing green hydrogen (the next generation of fuel) at temperatures lower than those found in outer space. |
|
Massive Scale |
The scale of industrial units is staggering. Some large-scale power plant exchangers contain over 50 miles of internal tubing—that is enough metal to cross an entire city! |
Preventive Maintenance Strategies That Actually Work
The most effective way to fight efficiency loss is to stop it before it starts through a "Proactive Maintenance" plan. This involves regular monitoring of the U-value (Heat Transfer Coefficient) to catch the earliest signs of a performance dip.
Effective strategies include:
Continuous Water Treatment: Using chemicals to keep minerals in suspension.
Scheduled Back-Flushing: Reversing the flow to knock loose debris out of the system.
Vibration Analysis: Ensuring that flow-induced vibrations don't trap sediment in corners.
Cleaning Methods: Mechanical vs Chemical Approaches
When the clog becomes too extreme, there are choices to be made: “Physical Scrubbing” or Chemical Dissolving.” Mechanical cleaning means using mechanical cleaning devices, such as brushes or very high-pressure water jets, to remove deposits physically from the interior of the equipment.
Chemical cleaning is another process, or CIP ("Clean In Place"). Is accomplished by rinsing the internals of a system using either chemical cleaning acids or detergents. If an end user does not consider their metallurgy or incorrectly selects a chemical cleaning agent may result in damage to their equipment due to chemical exposure. There are two primary causes of this type of deposit formation within heat exchangers:
Design Factors That Reduce Long-Term Clogging Risk
A well-engineered system is designed to be "Self-Cleaning" by maintaining high turbulence inside the channels. The design of heat exchanger types is based upon eliminating “dead zones,” which is where sediment builds up due to the absence of flow through the heat exchanger unit.
Designers also consider these factors to mitigate risk:
- Increased Surface Area: Providing extra margin for future fouling.
- Easy Access Points: Including removable heads for faster mechanical cleaning.
- Material Selection: Using smooth, polished metals that are harder for scales to stick to.
Water Quality, Flow Rate & Operating Conditions Explained
Water quality is the primary driver of scaling; "hard" water is essentially a recipe for a clogged system. Similarly, the flow rate must be high enough to keep particles moving but not so high that it causes erosion of the pipe walls.
Operating conditions also play a huge role:
Higher Heat: Elevated temperatures promote/minimize the “baking” of minerals onto the heat exchanger’s surface area.
Lower Velocity: Fluid can settle onto the bottom of the heat exchanger at a slow velocity, and the solid particles can settle out of the fluid.
Cost of Ignoring Clogging: Energy Loss & Downtime
Ignoring a dirty system is a guaranteed way to bleed money through increased electricity and fuel costs. A clogging system also impacts the pump and compressor life, thereby resulting in the premature failure of the motor.
When comparing the purchase price of a heat exchanger with the potential cost of unplanned downtime at $50,000.00 per day, consider that a quality maintenance plan will be less expensive than a complete system failure.
Monitoring Tools That Improve Operational Reliability
In current plants, time-stamped electronic sensors are employed to record real-time performance. This will allow you to observe conditions that will be indicative of fouling at a critical point by inserting differential pressure sensors and precision thermometers at strategic positions in the heat exchanger.
Reliability tools include:
- Smart Flow Meters: Detecting even minor drops in fluid velocity.
Ultrasonic Sensor Measurement: A way to measure tube scale thickness without having to disassemble the tube.
Predictive Maintenance and Analytics Powered by the Cloud - Figure Out When The Next Cleaning Cycle Will Occur
Industry Best Practices for Maximum Heat Transfer Efficiency
Maximising Overall Efficiency for Best Heat Transfer: All exchangers/tubes should provide a consistent turbulent flow through the heat exchangers/tubes since the cleaning ability of the exchangers/tubes can be attributed to the turbulent state of motion in the fluids flowing through them.
Best practices suggest:
- Regular Fluid Analysis: Testing the chemistry of your cooling water every month.
- Proper Insulation: Ensuring that heat is transferred to the fluid, not the surrounding air.
- Operator Training: Teaching staff to recognize the subtle signs of thermal decline.
Final Checklist: Keeping Your Heat Exchanger at Peak Performance
Before closing out your maintenance database, ensure that you have checked off these critical items. Have you updated the performance records to include the seasonal ambient temperature measurements?
Pressure Check: Are the pressure drops acceptable according to Manufacturer specifications?
Leak Check: Have all gaskets and seals been checked for weeping or dampness?
Water Conditioning: Does the water conditioner (chemicals) match up to the right levels according to the flow rate?
Document cleanings and inspections monthly, and are compliant with the 2026 code on record keeping.
Frequently Asked Questions (FAQs)
- How often should I clean my heat exchanger?
It depends on the fluid. While clean water systems can go 2 years, systems handling "dirty" industrial fluids may need cleaning every 3 to 6 months.
- Why does my system smell "sulfur-like" when it's clogged?
A foul smell (sulfate-reducing bacteria) that develops among the stagnant solids in the exchangers/tubes can be used to identify biological fouling.
- Can I just increase the pump speed to fix a clog?
No. Speeding up the pump to surpass the required flow rate could be a problem temporarily, but it will raise the pressure to unacceptable levels and possibly result in Erosion-Corrosion and damage the tubes.
- What is the most efficient type of heat exchanger?
Generally, plate-type heat exchangers are effective in drying/cooling liquids with their very massive surface area and mixing flow within the heat exchanger/tube.
