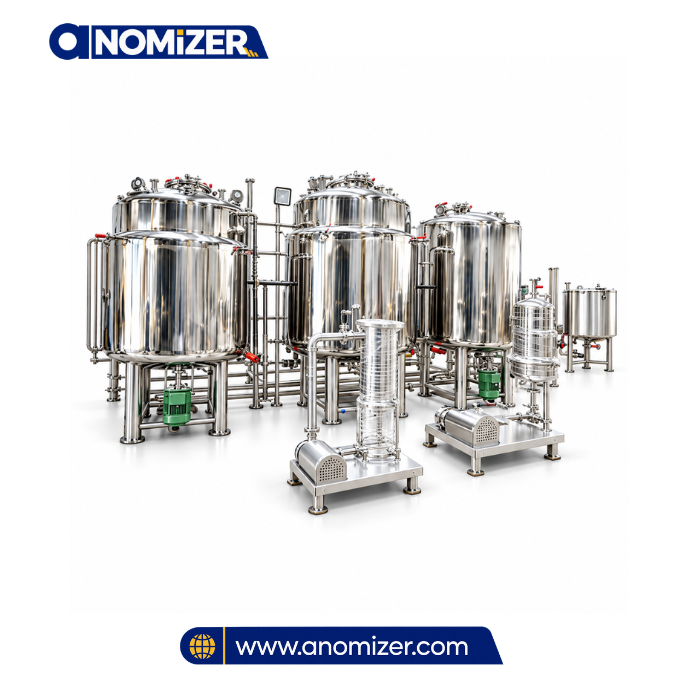

Automatic Liquid Oral Syrup Processing Plant

Anyone who has run a syrup line by hand knows how much depends on the operator. One person adds sugar a little fast, another heats a little longer, a third forgets to log the mixing time. The syrup still comes out looking fine, but the batches are never quite the same. In a regulated market, "never quite the same" becomes a problem.

An automatic liquid oral syrup processing plant takes most of that guesswork out. Temperatures, speeds, timings and transfers follow a stored recipe, so every batch is made the same way, whoever is on shift. Anomizer designs and builds these plants for pharmaceutical and nutraceutical manufacturers who want repeatable quality with less manual handling.

What Makes a Syrup Plant "Automatic"

A manual plant relies on people to open valves, watch gauges and start pumps. An automatic plant hands those jobs to a control system, usually a PLC with a touchscreen. The operator selects a recipe, loads the ingredients and starts the batch. The system then controls heating, agitation, transfer, filtration and holding times on its own.

Automation does not remove the need for skilled people. It changes what they spend time on. Instead of watching dials, they check quality, handle materials and deal with exceptions.

How the Process Runs

The process follows the same logic as any syrup plant, but each step is monitored and recorded.

It begins in the sugar dissolving vessel. Purified water is heated to the set temperature, and sugar is added under agitation until it forms a clear base syrup. Sensors hold the temperature within a narrow range, which prevents graininess on the low side and caramelization on the high side.

The base syrup is transferred to the manufacturing vessel through sanitary pipework. Actives, preservatives, sweeteners, flavours and colours are added in the programmed order. Suspensions get extra shear from a homogenizer or colloid mill so particles stay evenly spread.

After mixing, the batch is cooled and passed through a filter, which gives the syrup its clarity. It then moves to a storage tank to await quality release and filling. Throughout the run, the system logs temperature, speed and time, so there is a clear batch record when you need one.

Main Equipment at a Glance

You can start with the core vessels and control panel, then add filtration, storage or CIP as your needs grow.

Why Manufacturers Choose Automatic Plants

The advantages show up in daily work more than in brochures.

• Consistency. Every batch follows the same settings, so taste, colour and viscosity stay steady from one lot to the next.
• Fewer errors. Ingredient order and timing are programmed, which reduces the chance of a missed step.
• Batch records. Process data is logged, making audits and investigations easier to handle.
• Less manual handling. Closed transfers lower the chance of contamination and reduce exposure for operators.
• Faster changeovers. Automatic cleaning cycles cut downtime between products.

Built for Hygiene

Syrup is sugary, and sugar feeds bacteria and mould. So the plant must be simple to clean and leave no place for residue to sit. Product contact parts are made from SS 316 or SS 316L, with SS 304 on outer frames and covers. Internal surfaces are polished smooth, welds are ground flush and corners are rounded.

Sanitary tri-clover fittings and valves allow quick dismantling where manual cleaning is still needed. Where a CIP system is fitted, spray balls and programmed cycles handle the routine washing.

For pharmaceutical customers, construction follows cGMP expectations, with material test certificates and traceable components. If your buyer or regulator needs particular documentation, tell us early so it can be planned into the order.

Choosing the Right Capacity

Pick a size based on current demand and where you expect to be in a few years.

These figures are starting points. We adjust the design to your product, batch routine and available floor space. If you plan to expand, we can leave space in the layout for more vessels, so the line does not need rebuilding later.

Options You Can Customize

• Heating method: steam, hot water, electric or thermic fluid
• Level of automation, from semi-automatic to fully PLC-controlled
• Recipe storage, alarm settings and batch reporting
• Agitator style and speed range
• Filtration type and fineness
• Layout: floor-mounted, platform-mounted or compact skid
• Surface finish and documentation level

Where These Plants Are Used

• Pharmaceutical cough syrups, antacids and paediatric liquids
• Nutraceutical tonics, vitamin and iron syrups
• Ayurvedic and herbal liquids
• Oral suspensions and elixirs
• Flavoured liquid concentrates

With proper cleaning between runs, one automatic plant can often handle several of these products.

Why Work With Anomizer

A process plant is a long-term purchase. You will rely on it every working day, so it matters who built it and whether they respond when you need help.

We fabricate in-house, which keeps responsibility clear. Vessels are tested for leaks and pressure before leaving the workshop. Agitators are checked for balance, seals are inspected, and the control system is run through its recipes before dispatch, so problems are found at our end instead of yours.

After delivery, you deal with the same team that built your equipment. That includes installation guidance, operator training and spare parts. We try to be straightforward about what we can deliver and when, because a plain answer is more useful than a polished promise.

Planning an Automatic Syrup Line?

If you're setting up a new line or upgrading a manual one, a simple conversation is the best starting point. Tell us what you make, your target batch size and the quality standards you follow. We'll suggest a suitable setup and send a clear quotation.

Contact the Anomizer team to discuss your automatic liquid oral syrup processing plant requirements.
