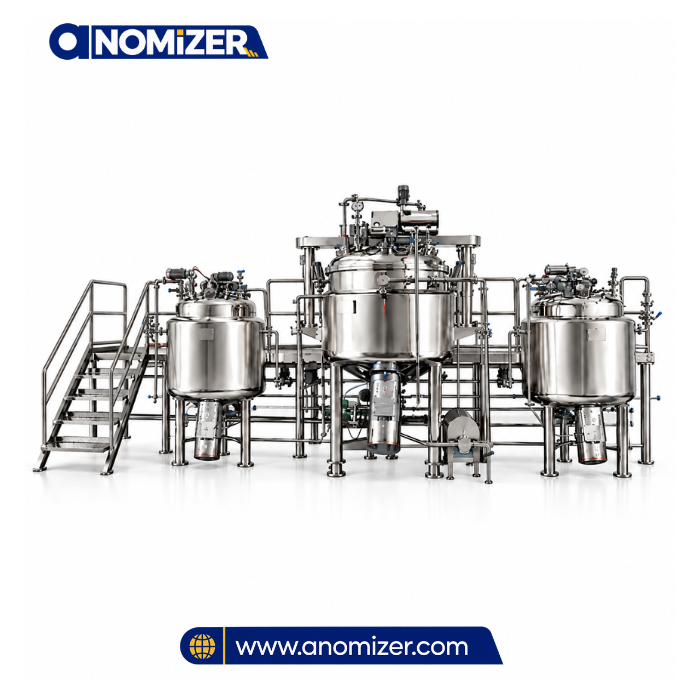

Ointment Manufacturing Plant Manufacturer in India

Ointment Manufacturing Plant

A good ointment feels simple in your hand. It spreads evenly, stays stable in the tube and behaves the same way every time you buy it. Getting that result at production scale is harder than it looks. Temperature, mixing speed, air in the batch and even the finish of the steel can change how the final product turns out.

Anomizer designs and builds ointment manufacturing plants for pharmaceutical, cosmetic and herbal producers who need the same quality in batch fifty as they got in batch one.

What an Ointment Manufacturing Plant Actually Is

Think of it as a single connected line rather than a pile of separate machines. Raw materials go in at one end. A smooth, uniform semi-solid mass comes out at the other, ready for storage or filling. The line usually covers melting, mixing, emulsifying, de-aerating, cooling and transfer.

The same plant can make ointments, creams, gels, balms and lotions with a thicker body. What changes from product to product is the recipe and the settings, not the machinery.

How the Process Runs

Most ointments are emulsions, which means oil and water have to be forced to live together peacefully. That takes preparation.

The oil phase (waxes, petroleum jelly, fatty alcohols, oil-soluble actives) is heated and melted in one vessel. The water phase (glycerin, preservatives, water-soluble ingredients) is heated in another. Doing this separately saves time and keeps each phase at the right temperature.

Both phases are then drawn into the main vessel under vacuum. A slow scraper-type stirrer keeps material moving along the walls, so nothing burns or sticks. At the same time, a high-speed homogenizer breaks the mixture into tiny, even droplets. Those small droplets are what give an ointment its smooth feel and stop it from separating later.

Vacuum does two jobs here. It removes trapped air, so you don’t get bubbles or a patchy texture, and it keeps powders from floating around when they are added. Less air also means less oxidation, which helps shelf life.

Finally the batch is cooled slowly through the jacket while the stirrer keeps going. Rushing this step is a common cause of lumps. Once it reaches the right temperature, the product is transferred out.

Main Equipment at a Glance

Not every customer needs everything in this table. A small producer might start with the main vessel and a pair of phase vessels, then add storage and automation as output grows.

Built to Stay Clean

Anything touching an ointment has to be easy to clean and must not react with the product. That’s why we use stainless steel throughout, SS 316L for product contact parts and SS 304 for outer frames and covers. Interior surfaces are polished smooth, because rough metal holds residue, and leftover residue becomes cross-contamination between batches.

Welds are ground flush. Corners are rounded. Sanitary fittings and tri-clover connections let operators dismantle and wash parts quickly. If your process calls for it, we can add clean-in-place arrangements so the plant can be washed without a full teardown.

For pharmaceutical work, the construction follows cGMP expectations, with material certificates and traceable parts that make your validation work easier. If your buyer or regulator needs particular documents, mention it early so it’s planned in from the start.

Choosing the Right Capacity

Size depends on how you plan to grow, not only on where you are today. Here is a rough guide.

These are starting points only. We adjust the design to match your product’s thickness, your batch routine and the floor space you have. If you expect to scale up later, we can leave room in the layout for another vessel, so you don’t have to rebuild the line.

What You Can Customize

• Heating method: steam, hot water, electric or thermic fluid
• Level of automation: from simple manual controls to a PLC with recipe storage and batch records
• Stirrer and homogenizer style, plus whether the homogenizer sits at the top or bottom of the vessel
• Plant layout: floor-mounted, platform-mounted or compact skid
• Surface finish and documentation to suit your quality standards

Where These Plants Are Used

The same basic process serves many industries. You’ll find these plants making pharmaceutical ointments and antiseptic creams, cosmetic moisturizers and body butters, Ayurvedic and herbal balms, pain-relief products, shaving creams, thick pastes and veterinary topical products. With proper cleaning between batches, one plant can often handle several of these.

Why Work With Anomizer

A process plant is a long-term purchase. You’ll lean on it every working day for years, so it matters who built it and whether they’ll pick up the phone later.

We fabricate in-house, which keeps accountability clear. Vessels are tested for leaks and pressure before they leave the workshop. Agitators are checked for balance, seals are inspected and the system is run before dispatch, so problems show up at our end instead of yours.

After delivery, you deal with the same people who built your equipment. That covers installation guidance, operator training and spare parts. We try to be upfront about what we can deliver and by when, because a straight answer is more useful than a polished promise.

Let’s Plan Your Ointment Line

If you’re setting up a new line or replacing an older one, a simple conversation is the best starting point. Tell us what you make, how much you want per batch and what quality standards you work to. We’ll suggest a suitable setup and send you a clear quotation.

Get in touch with the Anomizer team to discuss your ointment manufacturing plant requirements
