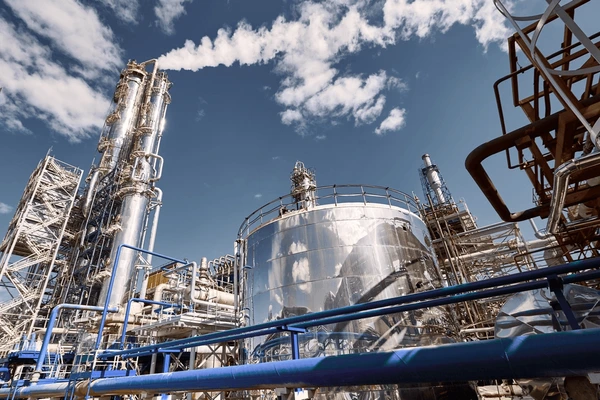

Distillation Column: Practical Notes From Real Plant Operation

A distillation column usually gets attention only when production starts drifting off target. Product purity changes. Steam consumption rises for no obvious reason. Operators start adjusting reflux again and again just to hold specification. Anybody who has spent time around refinery or solvent recovery units has seen this happen.

On paper, distillation looks straightforward. Heat the mixture, separate components based on boiling points, condense the vapor. Actual plant operation is far less clean than theory.

Feed quality changes. Trays foul over time. Pressure fluctuates during high load conditions. Even cooling water temperature can affect stability in older plants.

That’s why proper distillation column design matters far beyond calculations done during the project stage.

What Is a Distillation Column?

A distillation column separates liquid mixtures through repeated vapor-liquid contact. Lighter compounds move upward with vapor while heavier fractions remain lower inside the tower.

Simple explanation. Real operation gets complicated fast.

Inside an operating unit, separation depends on reflux ratio, vapor-liquid equilibrium, tray efficiency, pressure balance, and heat duty all working together properly. One unstable condition usually affects several others.

In chemical plants handling contaminated solvents, fouling becomes a regular problem. Refinery towers deal more with hydraulic loading and pressure stability. Pharmaceutical systems often run under vacuum because high temperatures can damage the product.

So while the basic principle stays the same, the operating behavior changes a lot depending on the process.

How Distillation Actually Works in Industry

The feed enters around the middle section of the tower. Reboiler heat at the bottom generates vapor, which rises upward through trays or packing material. Liquid flows downward at the same time.

As vapor contacts the liquid repeatedly, lighter compounds enrich toward the top section while heavier material drops lower into the column.

The condenser removes heat from overhead vapor and converts it back into liquid. Part becomes product. The remaining liquid returns as reflux.

That reflux ratio controls separation quality more than many new engineers expect.

Higher reflux improves purity, but steam load usually increases with it. Condenser duty rises too. Plants constantly balance product specification against utility cost.

One thing operators usually notice during unstable operation is temperature profile drift across trays. Stable columns develop fairly predictable temperature patterns. Once those readings begin moving around too much, something inside the process is changing.

Distillation Column Diagram Explanation

A standard distillation column diagram normally includes these major sections:

Most diagrams look confusing at first. After working around columns for some time, the flow pattern becomes easier to follow.

Distillation Column Design Considerations

Good distillation column design is not only about theoretical efficiency. Plants care more about stable operation during continuous production.

Vapor Liquid Equilibrium (VLE)

VLE data determines how components behave under operating pressure and temperature conditions. If equilibrium assumptions are wrong, stage calculations become unreliable very quickly.

Multi-component solvent systems are especially sensitive here.

Reflux Ratio and Stage Efficiency

Theoretical stages represent ideal separation. Actual tray efficiency is always lower because real operating conditions are never perfect.

Tray fouling, vapor maldistribution, foaming, and liquid distribution problems all reduce efficiency over time.

Experienced process engineers often prefer running at the minimum reflux ratio that still protects product purity. Pushing excessive reflux just increases energy consumption.

Pressure Drop and Column Hydraulics

Pressure drop tells engineers a lot about internal column behavior.

Excessive pressure drop usually points toward fouling, flooding, vapor restriction, or tray loading problems. In older chemical plants, scaling buildup around trays and downcomers is pretty common after long operating campaigns.

Column hydraulics also control weeping, entrainment, and vapor stability.

Types of Distillation Column

Different industries use different types of distillation column systems depending on operating pressure, feed composition, and separation requirement.

Fractional Distillation Column

A fractional distillation column handles multi-component separation through repeated vaporization and condensation stages. Refineries use these systems heavily for crude oil processing.

Large towers may contain dozens of trays along with multiple side draws.

Tray Columns

Tray columns remain common because maintenance access is easier during shutdown inspection. They also tolerate changing operating conditions reasonably well.

Packed Columns

Packed columns generate lower pressure drop and are often preferred for vacuum operation.

The downside is maintenance access. Cleaning fouled packing sections during shutdown is never a pleasant job.

Vacuum and Steam Distillation

Vacuum columns help process temperature-sensitive materials without thermal degradation. Steam distillation works well for volatile compounds and solvent recovery service.

Distillation Column Parts and Their Functions

Understanding major distillation column parts helps during troubleshooting.

Column Shell

The shell handles pressure, temperature stress, and corrosion exposure continuously. Material selection matters more than many buyers initially think.

Trays and Packing

These internals create contact between vapor and liquid phases. Better mass transfer usually means better separation efficiency.

A sieve tray distillation column is still widely used because of its simple construction and lower fabrication cost.

Reboiler

Reboilers supply heat duty to the tower. Fouling inside reboiler tubes becomes a problem during long continuous operation, especially in contaminated solvent service.

Steam demand usually rises gradually once scaling builds up.

Condenser

Condenser performance affects reflux stability directly. Cooling water temperature swings can create pressure instability in older plants operating near capacity.

Packed Column vs Tray Column vs Sieve Tray Distillation Column

In actual plant conditions, many refinery teams still prefer tray systems simply because troubleshooting and maintenance are easier during shutdowns.

Flooding and Entrainment Problems

Flooding in distillation column operation happens when vapor flow becomes high enough to restrict downward liquid movement. Pressure rises quickly once flooding starts.

Operators usually notice:

• Sudden pressure increase
• Product contamination
• Foaming
• Temperature instability
• Reflux imbalance

One issue that shows up often during production expansion projects is columns being pushed beyond original hydraulic limits.

Entrainment in distillation column systems is another common problem. Vapor carries liquid droplets upward between trays, reducing product purity.

Low vapor flow creates the opposite issue called weeping. Liquid leaks downward through tray perforations because vapor velocity is too weak to support proper tray loading.

Maintenance and Shutdown Reality

Distillation towers rarely look clean during shutdown inspection.

Maintenance crews commonly find tray corrosion, scaling deposits, fouled downcomers, warped supports, and damaged packing sections after long operating campaigns.

Chemical plants processing contaminated streams usually experience heavier fouling than refinery hydrocarbon service.

Sometimes operators spend weeks troubleshooting instability before discovering the actual issue was partial tray damage inside the tower.

That happens more than people admit.

Energy Optimization and Heat Balance

Most plants spend serious time monitoring steam consumption because utility cost adds up quickly during continuous operation.

Heat integration, reflux optimization, better insulation, and tray upgrades can reduce energy demand noticeably.

Still, there’s usually a tradeoff. Lower energy usage may reduce separation sharpness if operators push optimization too aggressively.

Good process optimization is rarely about chasing theoretical maximum efficiency. Stable long-term operation matters more.

Industrial Applications

A modern industrial distillation column is used across several industries:

Each process creates different operating challenges depending on viscosity, contamination level, pressure conditions, and temperature sensitivity.

Pricing Factors

Distillation column pricing depends on several engineering factors, not only size.

A lot of pharmaceutical and high-pressure distillation systems are built according to ASME standards because inspection quality, welding reliability, and pressure safety become critical during long-term operation.

Approximate Pricing

Why Anomizer Works With Industrial Plants

Anomizer supplies customized distillation equipment for chemical processing, pharmaceutical manufacturing, solvent recovery, and petrochemical applications.

What usually separates experienced manufacturers from generic fabricators is operational understanding. Tray spacing, metallurgy selection, maintenance access, pressure handling, and fabrication quality all affect long-term plant reliability.

That becomes obvious after years of continuous operation.

Conclusion

A well-running distillation column usually stays unnoticed. That’s actually a good sign.

When tray hydraulics, reflux balance, heat duty, and maintenance practices stay under control, plants operate more predictably. Product purity remains stable. Utility consumption stays manageable. Operators spend less time chasing process instability.

But once fouling, flooding, pressure fluctuations, or tray damage begin developing, the whole system starts fighting itself.

Experienced engineers understand this pretty quickly. Real column performance is not measured during commissioning. It’s measured after years of continuous operation when feed conditions change, maintenance becomes harder, and the process still needs to stay stable every day.
